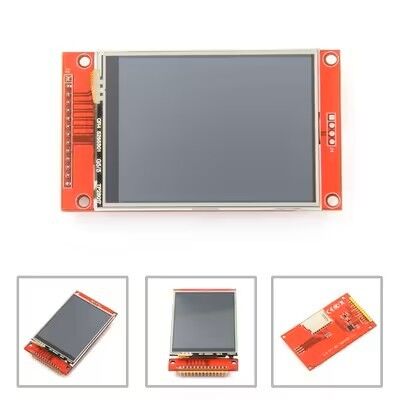

2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications

2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications

2.8 Inch SPI LCD Module

SPI LCD Module 240*320

240*320 SPI LCD Display Module

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)

Chat Now
Request A Quote
2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications 2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications 2.8 Inch SPI LCD Module 240*320 SPI LCD Display Module For Embedded Applications
Product Details
Outline:
118.5×84.7×5.2 Mm
Color Gamut:
72 % Of NTSC(Typ.)
Drive System:
A-Si TFT Active Matrix
Signal Interface:
LVDS
Response Time:
6ms
Controller Ic:
SSD1316
Display Mode:
Normally White, Transmissive
Lumens Degrees:
1000cd/m²
Viewing Area:
116.2mm×87.1mm
View Direction:
Free/all
Storage Temperature:
-30℃~80℃
Display Color:
Monochrome Black And White
Operating_Temperature:
-20°C To 70°C
Lcm Dimension:
34.60(H) X 47.80(V) X 1.90(T)
Interface:
RGB, SPI, MIPI, LVDS, Or Parallel
Highlight:

2.8 Inch SPI LCD Module

,

SPI LCD Module 240*320

,

240*320 SPI LCD Display Module

Payment & Shipping Terms
Minimum Order Quantity
500
Price
$4.8-5.4/pieces(MSP2807);$4.2-4.8/pieces(MSP2806)
Packaging Details
16*15*6(cm)/43g
Delivery Time
30-45 days
Payment Terms
T/T
Supply Ability
5K/month
RELATED PRODUCTS
Good price XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional ) online

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now
Good price YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi online

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now
Good price 800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch online

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now
Good price 10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover online

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now
CONTACT US
86--19886133596
xxtricky@163.com
Chat Now
Product Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBN028EGS-Q1(MSP2806)/YBR024EGS-Q1(MSP2807)
Document
Type:
SPI Display
Display Size:
2.8 Inch
Supplier Type:
Factory
Highlight:

2.8 inch SPI Display

,

240*320 Resolution LCD Module

,

SPI Interface TFT Display

Product Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module
High-performance 2.8-inch SPI display LCD module featuring 240×320 resolution and SPI interface for embedded applications.
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 0
Product Features
  • 2.8-inch color screen supporting 65K color display for rich color reproduction
  • 320×240 resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O connections
  • SD card slot for easy experiment expansion
  • Comprehensive sample programs provided
  • Military-grade process standards for long-term stable operation
  • Complete underlying driver technical support
Technical Specifications
Size 2.8 inch
SKU MSP2806 (No Touch); MSP2807 (With Touch)
Resolution 240×320 dots
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 43.2×57.6 mm
Dimensions 50.0×86.0 mm
VCC Power Voltage 3.3V / 5V
Luminance 230 Cd/m² (no touch); 190 Cd/m² (with touch)
Driver IC ILI9341
Power Consumption 0.31W
Logic IO Port Voltage 3.3V (TTL)
Weight No touch: 34g / With touch: 43g
Interface Description
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 1
YBR028EGS-Q1 Interface Pinout
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 2
Product Dimensions
YBR028EGS-Q1 2.8-inch SPI Display LCD Module with 240*320 Resolution and SPI Interface for Embedded Applications 3
