Name: XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: YB101WSVL-P01
Price: 46.00 USD
Availability: InStock

Home > Products > HDMI LCD Display >

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

10.1 inch spi lcd display

10.1 inch hdmi lcd display

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YB101WSVL-P01

Chat Now

Request A Quote

Product Details

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

10.1 inch spi lcd display

10.1 inch hdmi lcd display

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$44-48/pieces

Packaging Details

300*240*60mm/900g

Delivery Time

30-45days

Payment Terms

T/T

Supply Ability

50K/Month

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

Detail Information

Place of Origin

China

Brand Name

XXT

Certification

CE/ROHS

Model Number

YB101WSVL-P01

Type:

HDMI LCD Display 1024×600

Display Size:

10.1 Inch

Supplier Type:

Factory

Video Input:

HDMI

Highlight:

10.1 Inch HDMI LCD Display

1024×600 Resolution IPS LCD Display

Raspberry Pi Compatibility Touch Screen Display

Product Description

XXT YB101WSVL-P01 10.1 Inch IPS HDMI LCD Display

High-resolution 1024*600 display with Raspberry Pi compatibility, featuring multi-point capacitive touch and comprehensive connectivity options.

Product Overview

The YB101WSVL-P01 is a 10.1-inch LCD monitor with integrated driver board supporting HDMI input and 5-point capacitive touch. The system includes headphone signal input and speaker output capabilities, operating on DC 5V power with standby power consumption under 0.2W.

Key Features

10.1-inch IPS display with wide viewing angles and superior color reproduction
High-resolution 1024*600 display delivering crisp image quality
Toughened glass touch panel with 6H hardness for enhanced durability and scratch resistance
5-point capacitive touch screen for responsive multi-touch operation
HDMI input interface for high-definition display connectivity
Built-in stereo dual speakers for audio playback
3.5mm headphone output port for private audio listening
Dual-function dial switch for backlight brightness and volume adjustment
Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black development boards
Supports multiple operating systems including Raspbian, Ubuntu, Kali, and Windows 10 IoT
Works as computer monitor with Windows 7/8/10 systems
Compatible with gaming consoles including PS4, XBOX360, and Nintendo Switch
CE and ROHS certified for quality assurance

Technical Specifications

Size	10.1 inch
Screen Type	IPS Screen
Backlight Adjustment	Switching and adjusting of dial switch
Resolution	1024*600 dots
Volume Adjustment	Switching and adjusting of dial switch
Touch	5 point capacitive
Power	USB-Type-C (5V/3A)
Touch IC	GT911
Speakers Power	8Ω 2W
Video Input	HDMI

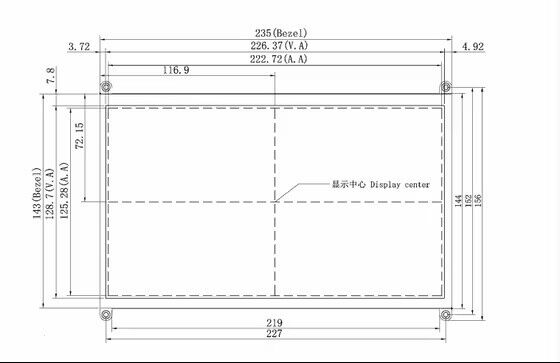

Dimensions	235160(20±0.2)mm
Audio Output Interface	3.5mm Audio Interface and Stereo speakers
Packaging Size	30024060mm
Weight	900 g (including packaging)

Interface and Key Description

HDMI Interface: Connect to source devices (computers, etc.) using HDMI cable. Supports maximum resolution of 1920*1080.
USB Input (USB-Type C): Connect to computers for touch functionality and power supply.
5V Power Input (USB-Type C): DC 5V Power Input
SPK1/2: Speaker Interfaces, each supports up to 2.6W (requires headphone-driven speaker output)
Headphone: Headphone Jack
Key: POWER/MENU/UP/DOWN/EXIT Button
