Name: 800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: YQ84-4
Price: 17.00 USD
Availability: InStock

Home > Products > HDMI LCD Display >

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

800*480 Raspberry Pi Zero Touch Screen

HDMI Port RTP Touch Panel

RTP Touch Panel 4 Inch

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YQ84-4

Chat Now

Request A Quote

Product Details

Name:

Raspberry Pi Zero Touch Screen

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

800*480 Raspberry Pi Zero Touch Screen

HDMI Port RTP Touch Panel

RTP Touch Panel 4 Inch

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$16-18.5/pieces

Packaging Details

100*65*50mm/126g

Delivery Time

30-45days

Payment Terms

T/T

Supply Ability

50K/Month

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

4 Inch Raspberry Pi Zero Touch Screen LCD Display 800*480 HDMI Port RTP Touch Panel

Detail Information

Place of Origin

China

Brand Name

xXT

Certification

CE/ROHS

Model Number

YQ84-4

Type:

Raspberry Pi Lcd Display

Display Size:

4 Inch LCD Display

Supplier Type:

Factory

Size:

4inch Display

Outline Dimension:

98.60*58.05

WEIGHT(LCM):

126g

Video Input:

HDMI

Highlight:

4 Inch Raspberry Pi Zero Touch Screen

Raspberry Pi Zero Touch Screen LCD Display

HDMI Port RTP Touch Panel

Product Description

4 Inch Raspberry Pi Zero Touch Screen LCD Display 800*480 HDMI Port RTP Touch Panel

Product Description

4" standard display with 800 * 480 resolution
IPS technology for fast response, wide viewing angle, and true color reproduction
Resistive touch screen supports touch control
Backlight control with adjustable brightness
Standard HDMI interface input, compatible with Raspberry Pi (3rd, 2nd, and 1st generation)
Can function as general-purpose HDMI monitor (requires 800*480 resolution output)
No IO resources needed for display only (Raspberry Pi uses IO resources for touch)
CE and RoHS certified

Product Parameters

Size	4.0 inch
SKU	MPI4008
Display Mode	IPS
Resolution	800*480 dots
Touch	4-wire resistive touch
Dimensions	14313451 mm
Weight	127 g

Hardware Description

3.5mm Headphone Jack: Output audio signal
HDMI: Connect main board and LCD display for HDMI transmission
Micro USB: Provides 5V power (optional if using 13*2 Pin Socket)
Backlight adjustment button: Short press changes brightness 10%, long press turns backlight off/on
13*2 Pin Socket: Provides +5V power from Raspberry Pi and transfers touch signals

13*2 Pin Socket Interface Definition

Pin	Name	Description
1,17	3.3V	Power supply +3.3V
2,4	5V	Power supply +5V
3,5,7,8,10,11,12,13,15,16,18,24	NC	No connection
6,9,14,20,25	GND	Ground
19	TP_SI	SPI data input of touch panel
21	TP_SO	SPI data output of touch panel
22	TP_IRQ	Touch panel interrupt signal (low when pressed)
23	TP_SCK	Touch panel SPI clock signal
26	TP_CS	Touch panel select signal (low level selects touch panel)

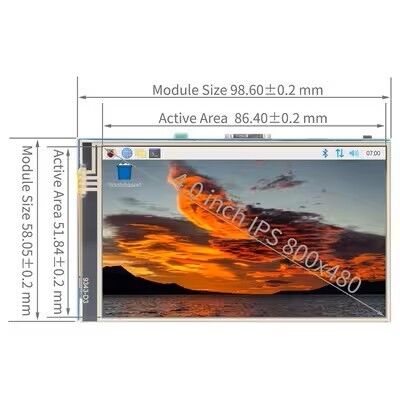

Dimensions

Connect with Raspberry Pi

Connect the LCD 13*2 Pin socket to Raspberry Pi as shown:
Connect the LCD and Raspberry Pi with the HDMI adapter:

How to Use with Raspbian

Step 1: Install Raspbian Official Image

Download from official website: https://www.raspberrypi.org/downloads/
Format Micro SD card using SDFormatter
Burn the official image to Micro SD card using Win32DiskImager

Step 2: Install Driver

Method 1: Online Installation (Requires Internet)

Log onto Raspberry Pi via Putty SSH (User: pi; Password: raspberry)
Execute the following command (you can click the right mouse button to paste after copied in Putty)

git clone https://github.com/goodtft/LCD-show.git

chmod -R 755 LCD-show

cd LCD-show/

sudo ./MPI4008-show
Wait for a moment after executing, you can use the LCD.

Method 2: Offline Installation

Download or copy "lcd-show.tar.gz" driver to Raspberry Pi system root directory: http://www.lcdwiki.com/res/RaspDriver/LCD-show.tar.gz
Unzip and extract drive files as the following command:

cd /boot

sudo tar zxvf LCD-show.tar.gz

cd LCD-show/

sudo ./MPI4008-show
Wait for a moment after executing, you can use the LCD

How to Use with Ubuntu, Kali and RetroPie

Step 1: Install Official Image

Download from official websites:
- Ubuntu: https://ubuntu-mate.org/raspberry-pi/
- Kali: https://www.offensive-security.com/kali-linux-arm-images/
- RetroPie: https://retropie.org.uk/download/
Format Micro SD card using SDFormatter
Burn the official image to Micro SD card using Win32DiskImager

Step 2: Install Driver (Offline Only)

Due to system differences, Ubuntu, Kali, RetroPie are temporarily unable to install drivers online. Only the offline installation method can be used.

1) Download the corresponding version of driver "LCD-show.tar.gz" from the website to the root directory of Micro SD card of raspberry PI system(Note: if the version does not match, the LCD may not display properly):

http://www.lcdwiki.com/4inch_HDMI_Display-C#Download_Resources

(After the completion of the recommended step 1, copy the driver directly into the Micro SD card root directory)

2) Unzip and install the driver using the following command:

cd /boot

sudo tar zxvf LCD-show.tar.gz

cd LCD-show/

sudo ./MPI4008-show

3) After the command is executed, the system will restart and the LCD will work normally

Quick Start with Pre-installed Driver Image

Download driver image from: http://www.lcdwiki.com/4inch_HDMI_Display-C#Download_Resources
Format Micro SD card using SDFormatter
Burn the image to Micro SD card using Win32DiskImager
Insert card, connect LCD, and start Raspberry Pi

How to Use as PC Monitor

Connect computer HDMI output to LCD HDMI interface
Power via Micro USB interface
For testing, use as only display (disconnect other monitors)
Note: Touch function not available when used as PC monitor
