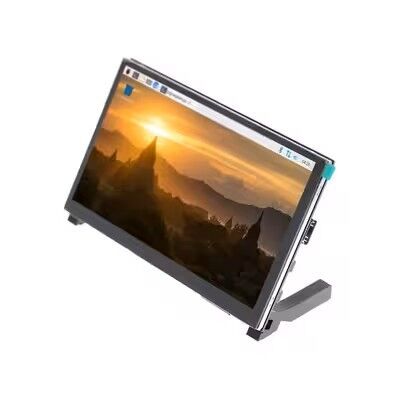

Name: 1024*600 HDMI LCD Display 7 Inch Raspberry Pi Touch Screen YQX6-7C
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: YQX6-7C
Price: 27.50 USD
Availability: InStock

Home > Products > HDMI LCD Display >

1024*600 HDMI LCD Display 7 Inch Raspberry Pi Touch Screen YQX6-7C

1024*600 HDMI LCD Display

HDMI LCD Display 7 Inch

7 Inch Raspberry Pi Touch Screen

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YQX6-7C

Chat Now

Request A Quote

Product Details

Name:

HDMI LCD Display

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

1024*600 HDMI LCD Display

HDMI LCD Display 7 Inch

7 Inch Raspberry Pi Touch Screen

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$26.5-30.25/pieces

Packaging Details

164.90 *102.00*14.25mm/510g

Delivery Time

30-45days

Payment Terms

T/T

Supply Ability

50K/Month

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen

Detail Information

Place of Origin

China

Brand Name

XXT

Certification

CE/ROHS

Model Number

YQX6-7c

Type:

7 Inch HDMI LCD Display

Display Size:

7 Inch

Supplier Type:

Factory

Video Input:

HDMI

Highlight:

7 Inch HDMI LCD Display

7 Inch LCD Display HDMI Screen

Raspberry Pi Touch Screen

Product Description

YQX6-7C 1024*600 7 Inch IPS HDMI LCD Display with 5-Point Capacitive Touch Screen

Premium Display Features

7-inch IPS display with wide viewing angles and true-to-life color reproduction
High resolution 1024*600 display for crisp, detailed visuals
Tempered glass touch panel with 6H hardness rating for durability
5-point capacitive touch screen for responsive multi-touch operation
HDMI input interface for high-definition video connectivity
3.5mm audio output jack for external sound devices
Dedicated backlight adjustment button for brightness control
Compatible with Raspberry Pi, Banana Pi, and BeagleBone Black
Plug-and-play support for Raspbian, Ubuntu, Kali, and Office software IoT
Works as a computer monitor withOffice software/8/10 (touch support)
Gaming console compatible with PS4, XBOX360, and Nintendo Switch
CE and ROHS certified for quality assurance

Technical Specifications

Size	7.0 inch	Screen Type	IPS Screen
SKU	MPI7006	Resolution	1024*600 dots
Backlight Adjustment	Independent button	Touch	5 point capacitive
Touch IC	GT911	Power	MicroUSB (5V/2A)
Dimensions	164.9 * 102 * 14.25 mm	Video Input	HDMI
Weight	510 g (including packaging)	Audio Output	3.5mm Audio Interface

Interface Diagram

Installation Guide

Raspberry Pi Installation

Install 4 copper posts YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen 1

Place Raspberry Pi and install 4 screws (M2.5) YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen 2

Stand Installation

Connection Guides

Raspberry Pi 4 Connection

Raspberry Pi 3 Connection

Important Note: Always connect cables before powering the Raspberry Pi. Use 2.5A power supply for Raspberry Pi 3B+, 3B, 2B, B+, A models. Use full 3A power supply for Raspberry Pi 4B.

PC/Laptop Connection

System Setup Instructions

1. Download Official Images

Raspbian: Download (Username: pi, Password: raspberry)
Ubuntu Mate: Download (Set credentials after startup)
Kali Linux: Download (Username: kali, Password: kali)
Retropie: Download (Username: pi, Password: raspberry)

2. Burn Image to SD Card

Download and install required tools:

SD Card Formatter: Download
Win32 Disk Imager: Download

Format SD card using SD Card Formatter YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen 7

Burn image using Win32 Disk Imager YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen 8

3. Modify Config.txt File

Add the following to the end of config.txt file:

hdmi_force_edid_audio=1 max_usb_current=1 hdmi_force_hotplug=1 config_hdmi_boost=7 hdmi_group=2 hdmi_mode=87 hdmi_drive=2 display_rotate=0 hdmi_cvt 1024 600 60 6 0 0 0

4. Insert SD Card

5. System Operation

After completing all connections, power on the Raspberry Pi to see display output with full touch functionality. YQX6-7C 1024*600 7 Inch HDMI LCD Display , Raspberry Pi Touch Screen 10
