Name: YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: YBC050PKH-Q2(MPI5006)
Price: 25.50 USD
Availability: InStock

Home > Products > HDMI LCD Display >

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

5 inch spi lcd display

5 inch hdmi lcd display

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YBC050PKH-Q2(MPI5006)

Chat Now

Request A Quote

Product Details

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

5 inch spi lcd display

5 inch hdmi lcd display

Payment & Shipping Terms

Minimum Order Quantity

500

Price

$24.5-27.5/pieces

Packaging Details

16*15*6(cm)/259g

Delivery Time

30-45 days

Payment Terms

T/T

Supply Ability

5K/month

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

Detail Information

Place of Origin

China

Brand Name

XXT

Certification

CE/ROHS

Model Number

YBC050PKH-Q2(MPI5006)

Document

Type:

HDMI Display

Display Size:

5 Inch

Supplier Type:

Factory

Video Input:

HDMI

Highlight:

5 inch HDMI LCD Display

1024×600 resolution TFT LCD Display

5-point capacitive touch Touch Screen Display

Product Description

YBC050PKH-Q2 5 Inch 1024*600 HDMI LCD Display with Capacitive Touch

High-quality 5-inch IPS TFT LCD display with capacitive touchscreen, specifically designed for Raspberry Pi and other mini PC applications.

Key Features

5-inch IPS full-view panel with 1024*600 resolution
HDMI input with scaling function supporting up to 1920*1080
5-point capacitive touchscreen with USB connectivity (driver-free)
USB dimming function with PC software for brightness adjustment
FPC flexible cable for embedded installation applications
Built-in OSD menu for contrast, brightness, and power control
Audio output capability
CE and RoHS certified for quality assurance

Compatibility

Compatible with Raspberry Pi, BeagleBone Black, Banana Pi, and other mini PCs. Supports Raspbian, Ubuntu, WIN10 IOT (multi-touch, driver-free) on Raspberry Pi. Works with Windows 7/8/8.1/10/11 (5-point touch, USB driver-free) as PC monitor. Also compatible with PS4, Xbox360, and Nintendo game consoles.

Technical Specifications

Parameter	Specification
Display Size	5.0 inch
SKU	MPI5006
Resolution	1024 * 600 dots
Touch Technology	5-point capacitive touch
Audio Output	Supported
Active Area	108.00 * 64.80 mm
Dimensions	121.11 * 77.93 * 13.94 mm
Weight	259 g (package included)

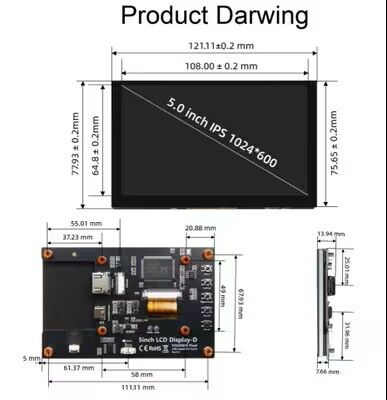

Product Dimensions

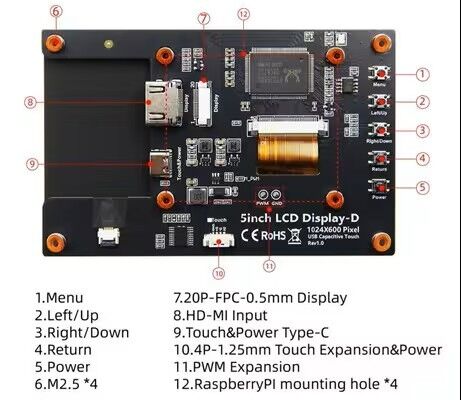

Hardware Overview

Manufacturing Facility
