YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module

YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module

480*320 spi display

480*320 spi lcd display

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YBC050PKH-Q1(MPI5005)

Document:

YBR035JGS-Q1（MSP3520） d...et.pdf

Chat Now
Request A Quote
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module
Product Details
Outline:
118.5×84.7×5.2 Mm
Color Gamut:
72 % Of NTSC(Typ.)
Drive System:
A-Si TFT Active Matrix
Signal Interface:
LVDS
Response Time:
6ms
Controller Ic:
SSD1316
Display Mode:
Normally White, Transmissive
Lumens Degrees:
1000cd/m²
Viewing Area:
116.2mm×87.1mm
View Direction:
Free/all
Storage Temperature:
-30℃~80℃
Display Color:
Monochrome Black And White
Operating_Temperature:
-20°C To 70°C
Lcm Dimension:
34.60(H) X 47.80(V) X 1.90(T)
Interface:
RGB, SPI, MIPI, LVDS, Or Parallel
Highlight:

480*320 spi display

,

480*320 spi lcd display

Payment & Shipping Terms
Minimum Order Quantity
500
Price
$8.2-9.3/pieces
Packaging Details
16*15*6(cm)/259g
Delivery Time
30-45 days
Payment Terms
T/T
Supply Ability
5K/month
RELATED PRODUCTS
Good price XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional ) online

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now
Good price YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi online

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now
Good price 800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch online

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now
Good price 10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover online

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now
CONTACT US
86--19886133596
xxtricky@163.com
Chat Now
Product Description
Detail Information
Place of Origin
China
Brand Name
XXT
Certification
CE/ROHS
Model Number
YBC050PKH-Q1(MPI5005)
Document
Type:
SPI Display
Display Size:
3.5 Inch
Supplier Type:
Factory
Highlight:

3.5 inch SPI Display

,

480*320 resolution LCD Module

,

Resistive touch TFT LCD Display

Product Description
YBR035JGS-Q1 3.5-inch SPI Module with 480*320 Resolution and Resistive Touch
This LCD module utilizes a 4-wire SPI communication interface with ILI9488 driver IC, delivering 320*480 resolution with optional touch functionality. The complete module integrates LCD display, backlight control circuitry, and touch screen control circuitry.
Product Features
  • 3.5-inch color screen supporting 16-bit 65K color display for rich color reproduction
  • 480*320 high resolution with optional touch functionality
  • SPI serial bus interface requiring minimal I/O pins for display operation
  • SD card slot for easy experiment expansion and data storage
  • Comprehensive sample programs provided for rapid development
  • Military-grade process standards ensuring long-term stable operation
  • Complete underlying driver technical support available
Technical Specifications
Parameter Specification
Size 3.5 inch
SKU MSP3520 (With Touch) / MSP3521 (Without Touch)
Resolution 480*320 dots
Touch Resistive touch
Module Interface 4-wire SPI interface
Display Color RGB 65K color
Active Area 48.96*73.44 mm
Dimensions 56.34*98 mm
Operating Voltage 3.3V / 5V
Power Consumption 0.62W
Weight No touch: 45g / With touch: 57g

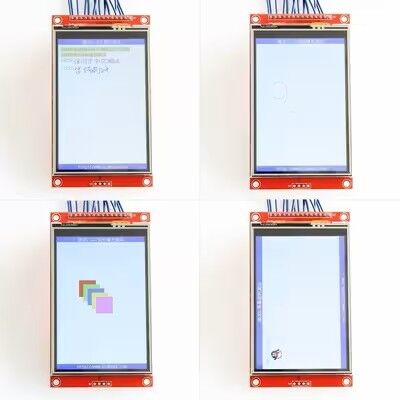

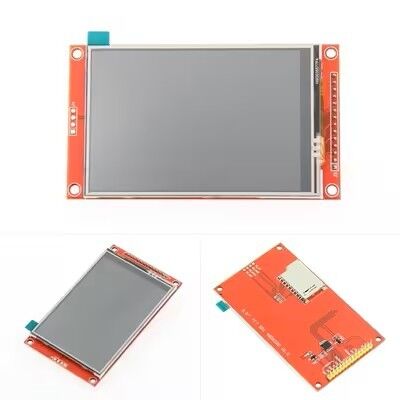

Product Appearance
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module 0

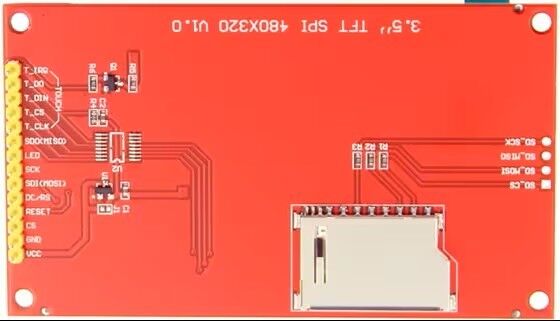

Interface Description
YBR035JGS-Q1 3.5-inch SPI Display with 480*320 Resolution and Resistive Touch LCD Module 1
