Name: 4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: YQ84-43DSI
Price: 22.50 USD
Availability: InStock

Home > Products > HDMI LCD Display >

4.3 Inch HDMI LCD Display 800x480 Capacitive Touch Screen Display With IPS TFT Technology

4.3 Inch HDMI LCD Display

HDMI LCD Display 800x480

800x480 Capacitive Touch Screen Display

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YQ84-43DSI

Chat Now

Request A Quote

Product Details

Name:

HDMI LCD Display

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

4.3 Inch HDMI LCD Display

HDMI LCD Display 800x480

800x480 Capacitive Touch Screen Display

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$21.5-24.2/pieces

Packaging Details

134*98*52(mm)/140g

Delivery Time

30-45days

Payment Terms

T/T

Supply Ability

50K/Month

XXT 10.1 Inch IPS HDMI LCD Display with 1024×600 Resolution and Raspberry Pi Compatibility(450/800cd/m² Optional )

Chat Now

YBC050PKH-Q2 5 Inch 1024×600 HDMI LCD Display with 5-Point Capacitive Touch for Raspberry Pi

Chat Now

800*480 Raspberry Pi Zero Touch Screen HDMI Port RTP Touch Panel 4 Inch

Chat Now

10.1 Inch HDMI Display Screen 1280*800 Resolution HDMI LCD Module With 6H Hardness Tempered Glass Cover

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

XXT 4.3 Inch 800x480 Capacitive Touch Screen Display With IPS TFT Technology

Detail Information

Place of Origin

China

Brand Name

XXT

Model Number

YQ84-43DSI

Type:

HDMI Display

Display Size:

4.3 Inch

Supplier Type:

Factory

Video Input:

HDMI

Highlight:

4.3 Inch Capacitive Touch Screen

800x480 Capacitive Touch Screen Display

4.3 Inch IPS Touch Display

Product Description

XXT 4.3 Inch 800x480 Capacitive Touch Screen Display IPS TFT Raspberry Pi Compatible for Windows 11/10/8.1/8/7

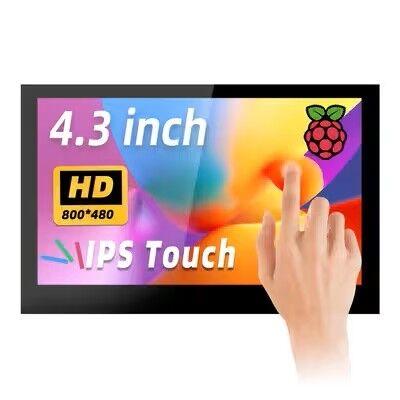

This 4.3-inch capacitive touch screen display features 800×480 resolution with IPS TFT technology, offering wide viewing angles and vibrant colors. Designed for seamless compatibility with Raspberry Pi and Windows systems, it provides plug-and-play functionality with no driver installation required.

Key Features

800×480 resolution capacitive touch IPS screen
Raspberry Pi MIPI DSI interface for direct output (plug and play)
Supports official Raspbian system with 2-point zoom functionality
Compatible with Ubuntu/Kali/Win10 IoT (single touch)
Supports Retropie
Backlight brightness adjustment button
PWM backlight brightness adjustment for different environments

Technical Specifications

LCD Type	IPS TFT	LCD Size	4.3inch
LCD Resolution	800×480	LCD Interface type	RGB
Module Interface Type	MIPI DSI	Touch screen type	Capacitive touch screen
Viewing Angle	IPS: Whole perspective	Working Voltage	3.3V
Maximum Operating Current	220mA	Operating Temperature	-20℃ to 70℃
Active Area	95.04×53.86 (mm)	Package Size	134×98×52(mm)
Module Weight (net weight)	97g	Package Weight	140g

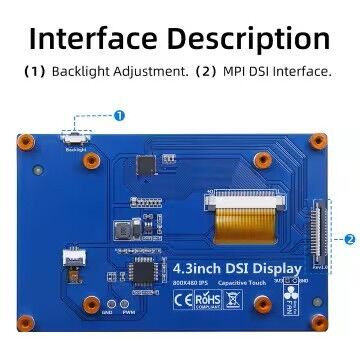

Hardware Description

Figure 1: Hardware components diagram

Key Components:

Backlight brightness adjustment button
MIPI DSI interface for connecting Raspberry Pi via FPC flexible cable
Backlight control mode selection:
- Right solder: Fixed maximum brightness
- Left solder: PWM brightness adjustment (default: fixed maximum brightness)
External PWM access point for controlling backlight brightness via GPIO

Module Dimensions

Figure 2: Module dimensions diagram

Installation Guide

Download the latest Raspberry Pi OS image from the official website
Prepare a Micro SD card (minimum 8GB) and format it
Burn the OS image to the SD card using Win32DiskImager
Insert the SD card into Raspberry Pi
Mount the Raspberry Pi to the display module using provided hardware
Connect the display module to Raspberry Pi's display interface via FPC cable
Connect power and boot the system

Note: The package includes all necessary mounting hardware (copper columns, screws, and FPC cables). Raspberry Pi 4 uses Type-C power while Pi 3 uses Micro USB.

Figure 3 & 4: Installation and connection diagrams

PWM Backlight Control

To control backlight brightness via PWM:

Configure hardware for PWM mode (solder resistor to left position)
Connect PWM access point to GPIO18 and GND to Raspberry Pi GND pin
Use the following commands to adjust brightness (0-1024 range):

gpio -g pwm 18 1024

gpio -g mode 18 pwm

gpio pwmc 1000

gpio -g pwm 18 X (X = brightness value 0-1024)

Note for Raspberry Pi 4: Update WiringPi GPIO library using:

cd /tmp

wget https://project-downloads.drogon.net/wiringpi-latest.deb

sudo dpkg -i -B wiringpi-latest.deb

Display Rotation Options

Method 1: FKMS Mode (Default for Raspberry Pi 4)

Rotate display through menu options (recommended to use mouse for operation).

Figure 6: FKMS rotation settings

Method 2: Traditional Graphics Mode

Add the following to /boot/config.txt:

display_lcd_rotate=x (x=0,1,2,3,0x10000,0x20000)

Where:

0 = Normal (default)
1 = 90° clockwise
2 = 180° clockwise
3 = 270° clockwise
0x10000 = Flip horizontal
0x20000 = Flip vertical

Touch Rotation Configuration

Modify /usr/share/X11/xorg.conf.d/40-libinput.conf with appropriate CalibrationMatrix values corresponding to display rotation.

Figure 10: Touch configuration file

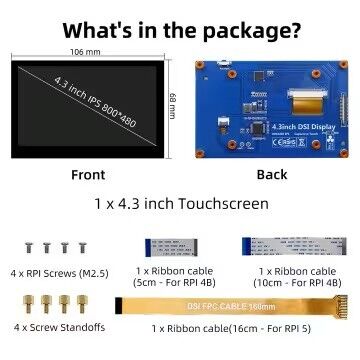

Package Contents

4.3inch DSI Display ×1
FFC-1.0-15P-10cm-(Reverse) ×1
FFC-1.0-15P-5cm-(Reverse) ×1
Screw (M2.5) ×4
Copper Pillar (M2.5) ×4
