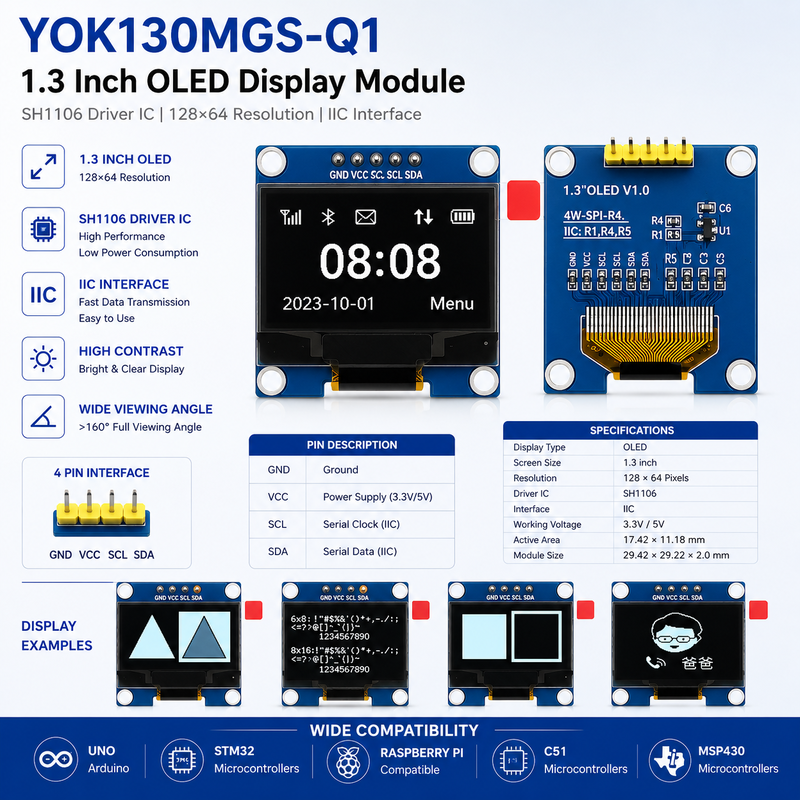

1.3 Inch OLED Display Module SH1106 I2C 128x64 OLED Display Compatible With Arduino UNO

The YOK130MGS-Q1 is a compact 1.3-inch monochrome OLED display module designed for embedded systems, development platforms, industrial electronics, and smart device applications. Featuring a 128×64 resolution, SH1106 controller IC, and SPI serial communication interface, the module delivers stable display performance, high contrast visual output, and efficient hardware integration.

Supporting both 3.3V and 5V logic systems, the module is compatible with UNO development boards, STM32, Arduino, Raspberry Pi, MSP430, C51, and other mainstream embedded platforms.

Available in white and blue monochrome display versions, the YOK130MGS-Q1 is suitable for portable instruments, industrial control terminals, IoT products, smart home devices, and embedded display applications.

• 1.3-inch monochrome OLED display
• 128×64 pixel resolution
• SH1106 controller IC
• 4-wire SPI communication interface
• Compatible with UNO development platforms
• Available in white and blue display versions
• Viewing angle greater than 160°
• High contrast OLED display technology
• 3.3V / 5V compatible power input
• Ultra-low power consumption
• Compact embedded integration design
• Suitable for industrial and smart device applications

OLED self-emissive display technology delivers sharp monochrome image quality with excellent contrast and clear readability. The 128×64 resolution supports stable rendering of text, icons, menus, and graphical user interfaces.

The module uses a 4-wire SPI communication interface for stable data transmission and efficient embedded integration.

SPI communication supports fast display updates while reducing hardware complexity for development projects and industrial applications.

Compatible with multiple development and embedded platforms including:

• UNO Development Boards
• STM32
• Arduino
• Raspberry Pi
• MSP430
• C51 Series Controllers

Suitable for educational development, embedded systems, and industrial electronics applications.

Supporting both 3.3V and 5V logic systems, the module can be connected directly to different MCU platforms without requiring additional voltage conversion circuitry.

With viewing angles greater than 160 degrees, the display maintains clear visibility from multiple directions, making it suitable for portable devices, control panels, and embedded display terminals.

Compared with traditional TFT display technologies, the OLED structure provides significantly lower power consumption, making the module suitable for battery-powered electronics and portable embedded systems.

Typical operating power consumption is approximately 0.06W.

The module is designed for continuous operation and supports stable long-term display performance for industrial and embedded applications.

Reliability verification procedures help maintain consistent operational stability.

The YOK130MGS-Q1 is suitable for:

• Embedded display systems
• Industrial control equipment
• Smart home devices
• Portable instruments
• Medical electronic devices
• IoT products
• Wearable electronics
• Consumer electronics
• Educational development projects
• Handheld electronic products

Each module undergoes inspection and functional verification before shipment to support stable operation and reliable display performance.

Verification procedures include:

• Functional testing
• Communication verification
• Display consistency inspection
• Reliability validation
• Packaging and transportation protection checks

Customization and technical support services available for integration projects:

• Interface customization
• FPC modification
• Connector adjustment
• Embedded integration support
• Driver support assistance
• Online technical documentation

• Professional export packaging
• Anti-static protective handling
• Secure transportation support
• International logistics solutions available

• Sample orders available
• Flexible MOQ support
• Stable production capacity
• OEM / ODM cooperation support
• Technical integration assistance

The YOK130MGS-Q1 combines compact OLED technology, efficient SPI communication, low power consumption, and reliable SH1106 controller performance in a practical 1.3-inch display solution.

It is an ideal choice for embedded systems, industrial electronics, smart devices, IoT equipment, and development applications requiring efficient integration, stable display performance, and dependable long-term operation.
