5.5 Inch OLED Display Module 256x64 SSD1322 OLED Display With Multi Interface Compatibility

5.5 Inch OLED Display Module 256x64 SSD1322 OLED Display With Multi Interface Compatibility

5.5 Inch OLED Display Module

OLED Display Module 256x64

256x64 SSD1322 OLED Display

Place of Origin:

GuangDong, China

Brand Name:

XXT

Model Number:

YOK0550OGB-J1

Chat Now
Request A Quote
Product Details
Name:
OLED Display Module
Outline:
118.5×84.7×5.2 Mm
Color Gamut:
72 % Of NTSC(Typ.)
Drive System:
A-Si TFT Active Matrix
Signal Interface:
LVDS
Response Time:
6ms
Controller Ic:
SSD1316
Display Mode:
Normally White, Transmissive
Lumens Degrees:
1000cd/m²
Viewing Area:
116.2mm×87.1mm
View Direction:
Free/all
Storage Temperature:
-30℃~80℃
Display Color:
Monochrome Black And White
Operating_Temperature:
-20°C To 70°C
Lcm Dimension:
34.60(H) X 47.80(V) X 1.90(T)
Interface:
RGB, SPI, MIPI, LVDS, Or Parallel
Highlight:

5.5 Inch OLED Display Module

,

OLED Display Module 256x64

,

256x64 SSD1322 OLED Display

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
$50~64
Packaging Details
19*8*5
Delivery Time
14-60days
Payment Terms
T/T
Supply Ability
1000pcs/month
Product Description
5.5 Inch 256x64 Resolution SSD1322 OLED Module with Multi-interface Compatibility for Industrial Applications
Product Overview

This industrial-grade 5.5-inch OLED module features the professional SSD1322 driver IC with a 256x64 high-resolution dot matrix green display. It offers multi-interface compatibility including 8-bit 68XX/80XX parallel and 3-/4-wire SPI interfaces, designed for demanding industrial applications.

Basic Information
Place of Origin Guangdong, China
Brand Name XXT
Certification CE, ROHS
Model Number YOK0550OGB-J1
Technical Specifications
Display Type 5.5" PMOLED Module (Green Display, Full Viewing)
Part Number GME050G-916
Driver IC SSD1322
Connection Type 15-Pin Parallel / 7-Pin SPI, PCB Mount Design
Working Voltage (VCC) 3.3V/5V DC (Standard Power Supply)
Interface Type 8-bit 68XX/80XX Parallel, 3-wire SPI, 4-wire SPI
Pixel Resolution 256x64 Pixels
Display Color Green
Operating Temperature -20℃ ~ +70℃ (Wide Temperature Adaptation)
Storage Temperature -30℃ ~ +80℃
Viewing Direction All Viewing Angle (360° Clear Display)
Active Area (A/A) 135.65mm(L)*33.89mm(W)
Viewing Area (V/A) 137.65mm(L)*35.89mm(W)
Module Core Size (LCD) 146.00mm(L)*45.00mm(W)
PCB Dimension 159.13mm(L)*50.17mm(W)
Iron Frame Thickness 0.8mm
Unnoted Tolerance ±0.2mm
Display Dot Pitch 0.53mm(L)*0.53mm(W) (Typ)
Compliance Standard RoHS (EU Environmental Instructions)
Key Features
  • 5.5-inch large-size PMOLED display with 256x64 high-resolution dot matrix
  • SSD1322 professional dedicated driver IC with stable performance
  • Multi-interface compatibility (8-bit 68XX/80XX parallel, 3/4-wire SPI)
  • Dual pin configuration options (15-pin parallel /7-pin SPI)
  • Full viewing angle display characteristic (360°), no visual loss from any direction
  • Excellent wide temperature adaptability (-20℃~+70℃ operating, -30℃~+80℃ storage)
  • Large active display area (135.65mm*33.89mm) for extensive information display
  • Precise mechanical tolerance (±0.2mm) for consistent product quality
  • Integrated iron frame design (0.8mm thickness) for enhanced structural stability
  • Optimized PCB and LCD size matching, compact structural design
  • Industrial-grade circuit design, stable signal transmission
  • Green monochrome display with high contrast for clear visibility
  • Support for hardware reset (RST pin) and chip select (CS pin)
  • Low power consumption characteristic of PMOLED technology
  • RoHS compliant materials and components
Application Areas
  • Industrial control equipment and large-size intelligent operation panels
  • Professional industrial instruments and precision measuring equipment
  • Embedded display systems and industrial single-board computers
  • Intelligent factory equipment and industrial automation control terminals
  • Building automation systems and large-size intelligent control panels
  • Power system equipment and electric power monitoring instruments
  • Communication base station equipment and network monitoring terminals
  • Smart transportation equipment and traffic control instruments
  • Marine and aerospace auxiliary equipment
  • Medical equipment and large-size professional medical instrument display panels
  • Financial self-service equipment and bank terminal display screens
  • Commercial service equipment and intelligent vending machines
  • Outdoor electronic equipment and field detection instruments
  • DIY electronic projects and high-performance microcontroller development boards
  • Various industrial and professional electronic products with large-size display needs
Product Image

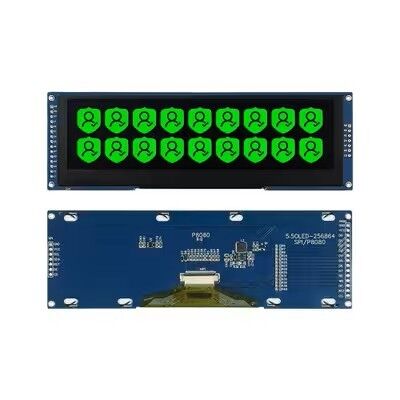

5.5 Inch 256x64 OLED Module SSD1322 front view showing display and connections
Application Examples
Example applications of 5.5 Inch OLED Module in industrial equipment
Frequently Asked Questions
How do you control product quality?

Each item undergoes strict testing before shipping to ensure reliability and performance, complying with the stated tolerance and technical parameters.

Do you supply samples?

Yes, we provide samples for evaluation, supporting small batch testing for your project development.

What is the delivery time?

Typically 7 working days after payment confirmation for both sample and bulk orders.

What is the minimum order quantity?

1 piece minimum order quantity, supporting individual purchase for prototyping and small projects.

What if we receive missing or defective items?

Please contact us immediately with product photos and order information, and we will investigate to provide the best solution promptly.

What are your main products?

Comprehensive range including various size LCD monitors, touch screens, housings, cables, accessories, plus development boards and accessories from NVIDIA, micro:bit, Arduino, BeagleBone Black and other leading brands.

What payment methods do you accept?

We accept T/T (Telegraphic Transfer) payments for all orders, both sample and bulk.

What shipping methods do you offer?

DHL and China Post shipping services available, covering global delivery for your convenience.
