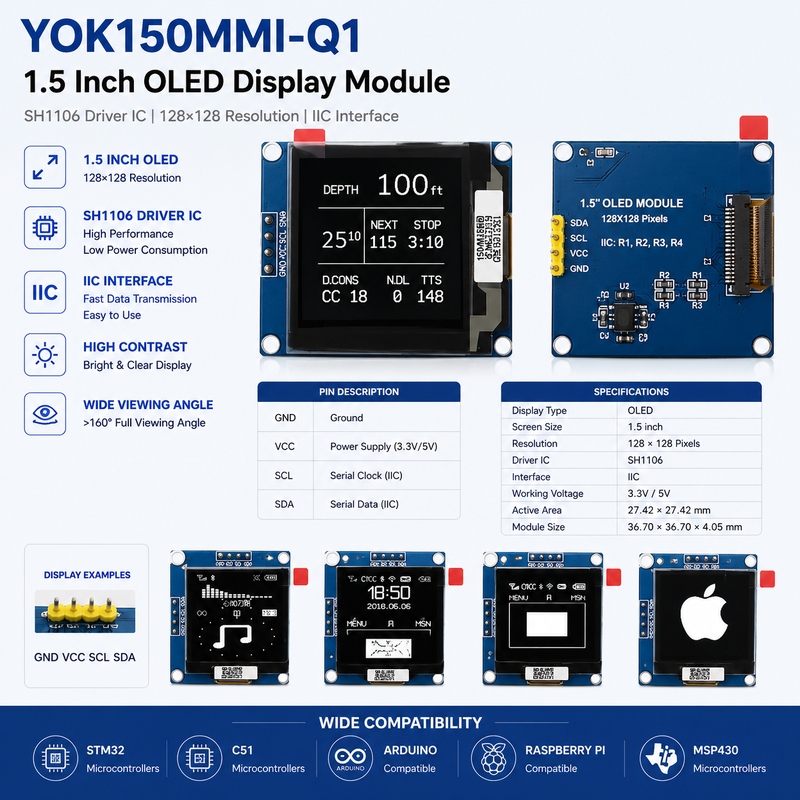

1.5 Inch OLED Display Module I2C SH1106 OLED Display 128x128 For Arduino Raspberry Pi STM32

The YOK150MMI-Q1 is a 1.5-inch monochrome OLED display module designed for embedded systems, industrial electronics, smart devices, and development platform applications. Featuring a 128×128 high-resolution display, SH1107 controller IC, and IIC communication interface, the module delivers clear visual performance, low power consumption, and simplified hardware integration.

Supporting both 3.3V and 5V logic systems, the module is compatible with STM32, Arduino, Raspberry Pi, MSP430, C51, and other mainstream embedded control platforms.

Available in monochrome white and blue display versions, the YOK150MMI-Q1 is suitable for industrial instruments, portable devices, smart home products, IoT systems, and embedded display applications.

• 1.5-inch monochrome OLED display
• 128×128 pixel resolution
• SH1107 controller IC
• IIC communication interface
• Available in white and blue display versions
• Viewing angle greater than 160°
• High contrast OLED display technology
• 3.3V / 5V compatible power input
• Ultra-low power consumption
• Compact embedded integration design
• Suitable for industrial and smart device applications

The 128×128 resolution provides sharp image rendering, clear text display, and smooth graphical performance for embedded user interfaces, icons, menus, and instrument displays.

OLED self-emissive technology delivers high contrast visual output and stable readability in different lighting environments.

The IIC communication interface reduces the number of required MCU pins, helping simplify PCB routing and hardware integration for embedded applications.

Data transmission is completed through SCL and SDA communication lines, supporting stable and efficient system communication.

Compatible with multiple embedded development platforms including:

• STM32
• Arduino
• Raspberry Pi
• MSP430
• C51
• ESP Series Controllers

Suitable for industrial integration, educational development, and smart device applications.

Supporting both 3.3V and 5V logic systems, the module can be connected directly to various microcontroller platforms without requiring additional voltage conversion components.

With viewing angles greater than 160 degrees, the display maintains stable visibility from multiple directions, making it suitable for portable instruments, control terminals, and embedded display systems.

Compared with traditional TFT display technologies, the OLED structure provides significantly lower power consumption, making the module suitable for battery-powered electronics and portable applications.

Typical operating power consumption is approximately 0.06W.

The module is designed for continuous operation and supports reliable long-term display performance for industrial electronics and embedded system applications.

Integrated power stabilization circuitry helps maintain stable display operation.

The module hardware architecture includes:

• OLED display control circuit
• IIC slave address selection circuit
• DC-DC boost circuit
• Voltage stabilization circuitry
• Pin interface connection system

The OLED self-emissive structure eliminates the need for a traditional backlight control circuit, helping simplify overall hardware design.

The module supports selectable IIC slave addresses through hardware resistor configuration.

• 0x78 (Default Configuration)

• 0x7A

The address selection feature supports flexible integration into multi-device IIC communication systems.

The YOK150MMI-Q1 is suitable for:

• Industrial control systems
• Embedded display terminals
• Smart home devices
• Portable instruments
• Medical electronic equipment
• IoT devices
• Wearable electronics
• Consumer electronics
• Educational development projects
• Handheld electronic products

Each module undergoes inspection and functional verification before shipment to support stable operation and reliable display performance.

Verification procedures include:

• Functional testing
• Communication verification
• Temperature reliability inspection
• Display consistency checks
• Packaging and transportation protection validation

Customization and technical support services available for integration projects:

• Interface customization
• FPC modification
• Connector adjustment
• Embedded integration support
• Driver support assistance
• Online technical documentation

• Professional export packaging
• Anti-static protective handling
• Secure transportation support
• International logistics solutions available

• Sample orders available
• Flexible MOQ support
• Stable production capacity
• OEM / ODM cooperation support
• Technical integration assistance

The YOK150MMI-Q1 combines high-resolution OLED technology, simplified IIC communication, low power consumption, and reliable SH1107 controller performance in a compact 1.5-inch display solution.

It is an ideal choice for embedded systems, industrial electronics, smart devices, IoT equipment, and development applications requiring efficient integration, stable display performance, and dependable long-term operation.
