Name: 8 Inch Industrial Computer Monitor IP65 Industrial Touch Display With Wide Temperature Range
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: YCXX7-8
Price: 130.00 USD
Availability: InStock

Home > Products > Industrial Computer Monitor >

8 Inch Industrial Computer Monitor IP65 Industrial Touch Display With Wide Temperature Range

8 Inch Industrial Computer Monitor

Industrial Computer Monitor IP65

IP65 Industrial Touch Display

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

YCXX7-8

Chat Now

Request A Quote

Product Details

Name:

Industrial Computer Monitor

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

8 Inch Industrial Computer Monitor

Industrial Computer Monitor IP65

IP65 Industrial Touch Display

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$122-138/pieces

Packaging Details

BOX

Delivery Time

30-45 days

Payment Terms

T/T

Supply Ability

5K/month

7 Inch Industrial Touch Screen Multi Touch Embedded Industrial Monitor With Wide Temperature Range

Chat Now

Pressure Resistant Industrial Computer Monitor 7 Inch - 21.5 Inch Multi Touch Monitor

Chat Now

IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications

Chat Now

21.5 Inch Industrial Computer Monitor Wide Temperature Fanless Panel Computer IP65

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

YCXX7-8 8Inch IP65 Industrial Touch Display with Wide Temperature Range and Multi-Touch Embedded Monitor

Detail Information

Place of Origin

Guangdong, China

Brand Name

XXT

Certification

CE,EMC

Model Number

YCXX7-8

Document

Type:

Lcm

Display Size:

7 Inch

Supplier Type:

Factory

Backlight Type:

LED

Resolution:

1024*768

Brightness:

300

Operating Temperature:

-10-60

Brand:

BOE

Display Type:

IPS

Mounting Type:

Embedded

Operating System:

Windows 7/8/10 / Linux/ VxWorks/ QNX/Android11/12/13

Touch:

USB Interface Multi-touch

Audio:

Realtek ACL662 Audio Controller

I/O Interface:

HDMI/RJ45/VGA/DC/DVI

Outline Dimension:

225.04*160.7*59mm

Power Supply:

DC 12V

Power Input:

AC 100-240V 50/60Hz (CCC, CE Certified)

Highlight:

Wide Temperature Range Industrial Touch Display

Multi-Touch Embedded Monitor

IP65 Industrial Monitor

Product Description

YCXX7-8 8-Inch IP65 Industrial Touch Display

The YCXX7-8 8-inch industrial touch display features a 1024*768 resolution with wide temperature range, pressure-resistant multi-touch capabilities, and IP65 rating. This compact embedded monitor is built with a full aluminum alloy structure featuring fanless, fully enclosed design and low power consumption, specifically engineered for diverse environmental conditions to ensure long-term stable operation in harsh industrial settings.

Robust Construction for Industrial Applications

The compact design supports multiple installation methods. Built with military-grade aluminum alloy structure and efficient heat dissipation design (compatible with fans), this monitor ensures stable operation in harsh environments while increasing service life, safety, and efficiency with zero noise operation.

Key Features

RTD2483 Chip for high-performance processing
Full military-grade aluminum alloy construction for high temperature, corrosion, and pressure resistance
Fine workmanship and long service life suitable for harsh environments
Efficient heat dissipation design compatible with fan cooling
Simplified interior without redundant wiring for uninterrupted operation
Capacitive touch screen with intuitive operation and high durability
Compatible with resistive touch technology
Comprehensive input and output interfaces for connecting various equipment

Technical Specifications

Panel Parameters

Parameter	Specification
Size	8"
Resolution	1024*768
View Angle	85/85/85/85 (L/R/U/D)
Color	Chroma: 16.7M
Brightness	300 cd/m²
Contrast	800:1
Response Time	6.5 ms
Display Area	162.048*121.536 mm
Pixel Pitch	0.158250.15825 mm (HV)

Screen & I/O Parameters

Parameter	Specification
Touch Type	Capacitive touch screen
Resolution	500DPI
Input Method	Handwriting or capacitive pen
Surface Hardness	7H
Calibration	Supported
HDMI	Support HDMI data output, up to 1080P
RJ45	Touch interface
VGA	1 port
DVI	1 port
Earphone Jack	3.5mm standard interface

Hardware Configuration

Component	Specification
CPU	RTD2483
System Language	English, Chinese
Video Input	PC-RGB: Format up to 1920*1080@60HZ, Color 16bit, 24bit, 32bit
Key Functions	AUTO, MENU, POWER, LEFT, RIGHT

Power Specifications

Parameter	Specification
DC Input	DC 12~24V
Power Consumption (Max)	12W
Power Input	AC 100-240V 50/60Hz (CCC, CE certified)
Power Output	DC12V / 4A

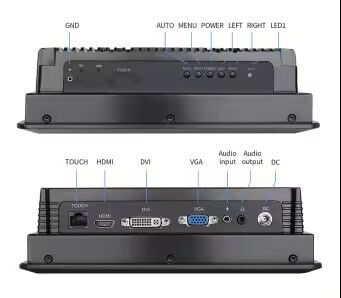

I/O Interface Panel

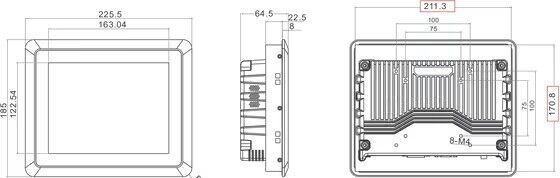

Dimensional Information

Overall Dimensions: 225.5*185*64.5mm (L*W*H)
