Waterproof Fanless Industrial Panel PC 21.5 Inch IP65 Touchscreen Monitors With Wide Temperature Range

Waterproof Fanless Industrial Panel PC

Fanless Industrial Panel PC 21.5 Inch

21.5 Inch IP65 Touchscreen Monitors

Chat Now

Request A Quote

Product Details

Name:

Fanless Industrial Panel PC

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

Waterproof Fanless Industrial Panel PC

Fanless Industrial Panel PC 21.5 Inch

21.5 Inch IP65 Touchscreen Monitors

Payment & Shipping Terms

Minimum Order Quantity

300

Price

$236-256/pieces

Delivery Time

10 work days

Payment Terms

T/T

Supply Ability

5K/month

7 Inch Industrial Touch Screen Multi Touch Embedded Industrial Monitor With Wide Temperature Range

Chat Now

Pressure Resistant Industrial Computer Monitor 7 Inch - 21.5 Inch Multi Touch Monitor

Chat Now

IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications

Chat Now

21.5 Inch Industrial Computer Monitor Wide Temperature Fanless Panel Computer IP65

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

21.5 Inch IP65 Rated Fanless Industrial Monitor and HMI Industrial Computer with Wide Temperature Range

Product Overview

21.5 Inch H Type Industrial Panel PC Embedded Touch Screen PC IP65 Fanless HMI Industrial Intelligent Industrial Computer

Place of Origin: Guangdong, China

Brand Name: XXT

Model Number: PC 215H

Type: Industrial Computer

Display Size: 21.5 Inch

Supplier Type: Factory

Outline Dimension: 520mm*311.8mm*55.98mm

Packing Dimensions: 600 *445 * 120mm

Net Weight: 5.3KG

Gross Weight: 6.5KG

Waterproof: Front Panel Protection: IP65 Rated

Product Features

Precision CNC Milling: High-precision CNC machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: Touch frame features an 18mm narrow bezel and 2mm reinforced design, enhancing surface hardness and anti-interference capability.
Full Aluminum Construction: Front panel designed to IP65 standard for water and dust protection, providing high overall airtightness and good electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Utilizes copper heat blocks combined with heat pipes for efficient continuous thermal management.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination.
Industrial LCD Panel: Original A+ grade LCD module with wide temperature range and high brightness.
I/O Interfaces: Supports 4 Ethernet ports, 6 USB ports, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C).
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations.
24/7 Operation: Designed for continuous operation with robust performance and long service life.

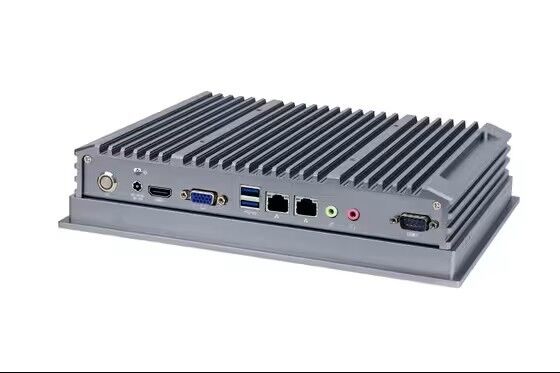

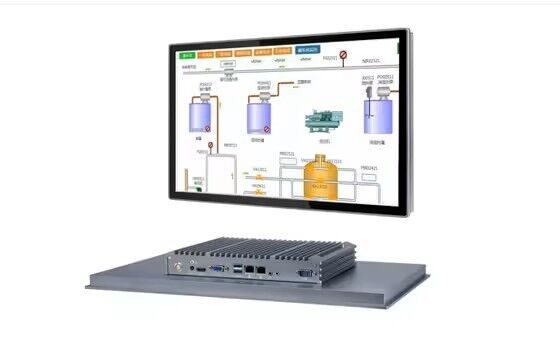

Product Views

Product Dimension

I/O Interface Diagram

Product Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive Touch Driver
Support	Windows 7/8/10, Linux, Android
LCD Display	21.5" XGA TFT (1920*1080)
Active Area	478mm*269.8mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2RJ-45, 2USB3.0, 2USB2.0, 1RS232/485, 5*RS232, Mini-PCIe slot
Dimensions	520mm311.8mm55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Installation:

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Desktop Mounting:

Cantilever Mounting:

Packing List

No.	Item	Qty
1	Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 * RS232; optional 6 * RS232/RS485
3	USB	Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

• This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.

• Do not place in humid environments to prevent condensation and component damage.

• Avoid prolonged direct sunlight or high UV environments to prevent screen damage.

• Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.

• Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
