Fanless 15 Inch Industrial Monitor 350 Cd/M2 IP65 Industrial Monitor

The PC150H 15 Inch H Type Industrial Computer is an embedded touch panel PC with IP65 fanless HMI designed for industrial monitoring applications. Featuring CNC precision engraving construction with seamless, screwless design, this industrial tablet offers multi-touch capability and robust performance for demanding environments.

• Multiple display sizes: 10.1/10.4/11.6/12.1/13.3/15/15.6/17/17.3/18.5/19/21.5/23.8 inches
• Various CPU options: J6412/N97/13/15/17 processors
• Operating system support: Windows 7/Windows 10/Linux/Vxworks/QNX

• Precision CNC Milling: High-precision machining ensures superior sealing, reduced dust intrusion, and enhanced equipment stability and service life
• Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design for improved surface hardness and anti-interference capability
• Full Aluminum Construction: IP65-rated front panel providing water and dust protection with excellent electromagnetic compatibility
• Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions
• Capacitive Touch: Full-flat, multi-point projected capacitive touch supporting full lamination, compatible with 5-wire resistive touch
• Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness
• I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options
• Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input
• Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations
• 24/7 Operation: Designed for continuous use with robust performance and long service life

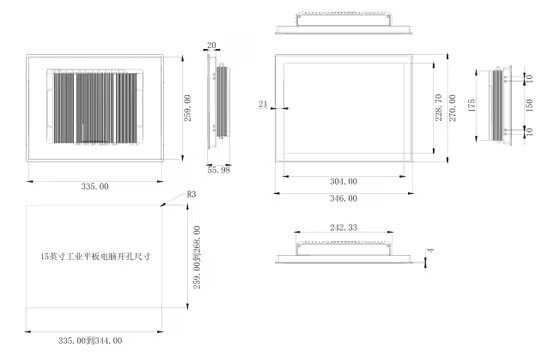

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.
2. Tighten the long screws and nuts onto the snap fasteners.
3. Four clips are fixed at the threaded hole positions on both sides.
4. Tighten the long screws to secure the equipment in place.
