Place of Origin:
GuangDong, China
Brand Name:
XXT
Model Number:
H2M8118_V2.0
Document:

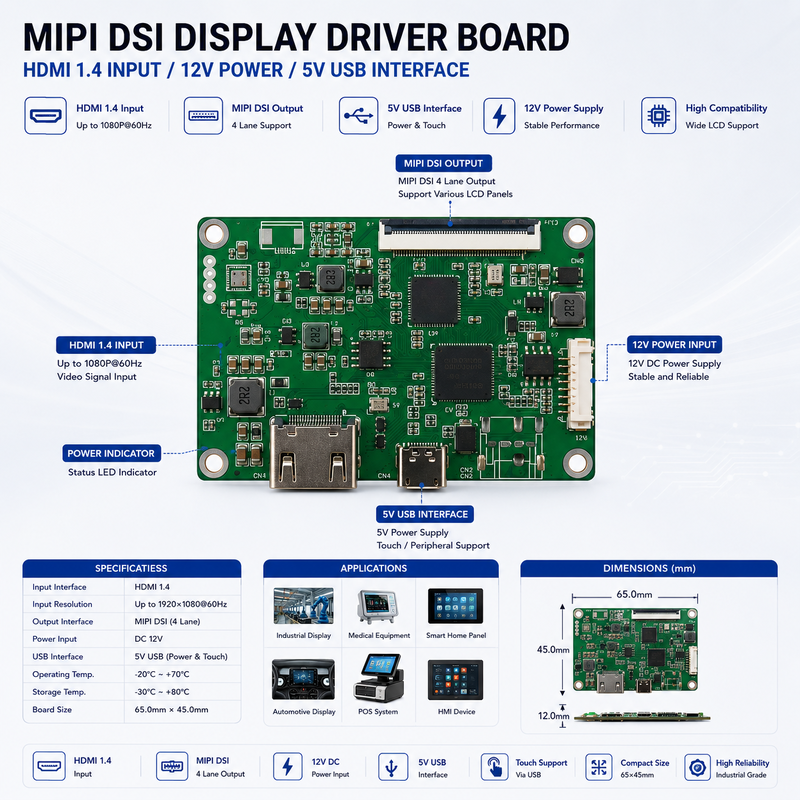

The H2M8118_V2.0 is a compact HDMI-to-MIPI DSI LCD driver board designed for embedded display systems, industrial monitors, smart terminals, and customized LCD integration projects. Featuring HDMI 1.4 input, MIPI DSI display output, optional capacitive touch integration, and flexible dual power input options, the board delivers stable display performance and broad compatibility across multiple platforms.
Supporting display resolutions from 480*480 up to 1200*1920, the controller board is suitable for industrial control equipment, multimedia display systems, Raspberry Pi projects, portable monitors, and smart embedded applications.
Its compact PCB structure integrates display control, touch support, parameter adjustment, and flexible expansion interfaces into an efficient industrial display solution.
| Item | Specification |
|---|---|
| Model Number | H2M8118_V2.0 |
| Product Type | HDMI to MIPI DSI Driver Board |
| Signal Input | HDMI 1.4 |
| Display Output | MIPI DSI |
| Supported Resolution | 480*480 ~ 1200*1920 |
| MIPI Lane Support | 1~4 Lanes |
| Data Rate | Up to 1.5Gb/s per Lane |
| Touch Interface | IIC Touch Interface |
| Touch Compatibility | GT911 / CST830 / FT6336 |
| Power Input | 12V DC / 5V USB Type-C |
| Backlight Current | Default 180mA |
| Outline Dimension | 65 * 45 mm |
| Operating Temperature | 0°C ~ +40°C |
| Storage Temperature | -10°C ~ +50°C |
| Relative Humidity | ≤80% Non-Condensing |
| System Compatibility | Windows / Android / Raspberry Pi |
| Certification | CE / RoHS / CB |
The controller board supports stable HDMI 1.4 signal input and MIPI DSI display output for reliable image transmission and smooth display performance. Its integrated display scaling capability improves compatibility with different LCD panel resolutions and embedded display configurations.
Supporting display resolutions from 480*480 up to 1200*1920, the board is suitable for a wide range of LCD panel applications including industrial displays, portable monitors, and embedded multimedia systems.
Compatible with multiple operating platforms including Windows, Android, and Raspberry Pi. Suitable for embedded systems, industrial equipment, multimedia terminals, and smart display projects.
The integrated IIC touch interface supports mainstream capacitive touch controller solutions including GT911, CST830, and FT6336. Suitable for interactive display systems and embedded touch applications.
The board supports multiple power supply options including 12V DC input and 5V USB Type-C input. This flexible architecture supports different deployment environments and embedded integration requirements.
Integrated key interface support allows adjustment of backlight brightness, contrast, color temperature, and display configuration settings. The board also supports indicator LEDs and optional remote-control functionality for convenient system management.
The compact 65mm * 45mm PCB structure supports installation in space-constrained embedded systems while maintaining stable electrical and thermal performance. Suitable for industrial control terminals, portable devices, and smart embedded applications.
| Interface | Description |
|---|---|
| CN1 | 12V DC Power Input |
| CN3 | HDMI 1.4 Signal Input |
| CN4 | USB Type-C Power Input |
| CN5 | Key/Button Interface |
| FPC1 | MIPI DSI Display Output |
| FPC2 | IIC Touch Interface |
| Pin | Signal | Description |
|---|---|---|
| 1-2 | LED+ | Backlight Positive |
| 9-10 | LED- | Backlight Negative |
| 20-33 | MIPI Differential Pairs | Data & Clock Signals |
| 37 | RESET | Panel Reset |
| 39 | VDD | Panel Power |
Customization services available for OEM and professional integration projects:
Each controller board undergoes inspection and functional verification before shipment to support stable operation and reliable display performance. Verification procedures include:
Technical assistance and customization support available for long-term projects:
The H2M8118_V2.0 combines stable HDMI-to-MIPI signal conversion, flexible resolution support, touch integration capability, and industrial-grade reliability in a compact LCD driver board solution. It is an ideal choice for embedded displays, industrial control systems, multimedia terminals, smart devices, and custom LCD integration projects requiring stable performance, efficient integration, and flexible customization capability.
