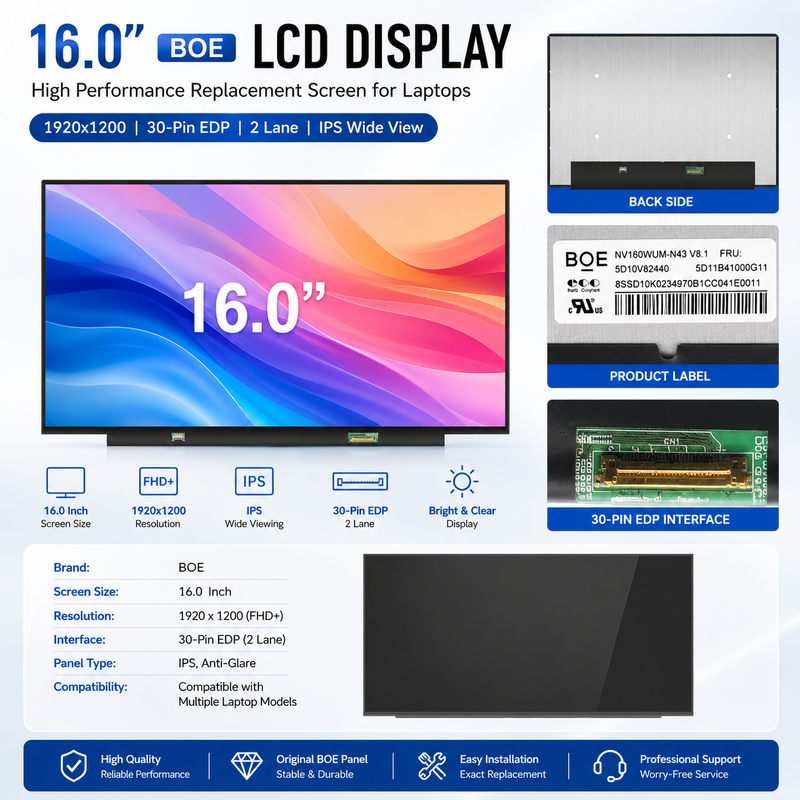

16.0" WUXGA Laptop LCD Panel 1920x1200 Laptop Replacement Screen With 30 Pin eDP Interface

The NV160WUM-N43 V8.1 is a 16.0-inch WUXGA TFT LCD display module designed for notebook computers, portable workstations, embedded systems, and high-resolution display applications. Featuring a 1920×1200 resolution with a 16:10 aspect ratio, this panel delivers enhanced vertical viewing space, clear image quality, and stable color performance for office, multimedia, and productivity-focused devices.

Equipped with a 2-lane 30-pin eDP 1.4 interface, LED backlight system, and anti-glare surface treatment, the display offers reliable signal transmission, low power consumption, and comfortable long-term viewing performance.

Its slim lightweight structure and wide viewing angle technology make it suitable for modern notebook integration and compact embedded display solutions.

• 16.0-inch WUXGA TFT LCD display
• 1920×1200 high-definition resolution
• 16:10 aspect ratio for expanded workspace
• 2-lane 30-pin eDP 1.4 interface
• Wide viewing angle technology
• LED backlight system
• Anti-glare surface with 3H hardness
• Slim and lightweight panel structure
• Low power consumption design
• Built-in EDID functionality
• Stable high-speed data transmission
• Suitable for notebook and embedded applications

The 1920×1200 WUXGA resolution combined with a 16:10 aspect ratio provides more vertical display space compared to traditional 16:9 screens.

Display benefits include:

• Clear text rendering
• Detailed image quality
• Improved workspace efficiency
• Enhanced productivity experience
• Smooth multimedia playback

The display supports 16.7 million colors and natural color performance suitable for office, multimedia, and general professional applications.

The panel delivers stable brightness and color consistency from multiple viewing positions.

Advantages include:

• Wide horizontal and vertical viewing angles
• Reduced color shifting
• Better screen-sharing experience
• Improved visual comfort

The anti-glare surface treatment also minimizes reflections under indoor lighting conditions.

The display adopts a compact and lightweight structure optimized for modern portable devices.

Mechanical advantages include:

• Slim profile integration
• Lightweight panel structure
• Reduced device thickness
• Easier notebook portability

Suitable for:

• Notebook computers
• Portable workstations
• Embedded display systems
• Compact industrial terminals

The panel uses a 2-lane eDP 1.4 interface supporting stable high-speed signal transmission.

Interface advantages include:

• Reliable image transmission
• Stable display performance
• Fast data communication
• Broad motherboard compatibility

Integrated features include:

• Embedded EDID support
• AUX channel communication
• HPD signal support
• PWM brightness control
• Panel self-test functionality

The display module is optimized for energy-efficient operation while maintaining stable brightness and image quality.

Power characteristics:

This helps improve battery performance in portable computing devices.

The panel is designed for long operating life and stable commercial use.

Reliability features include:

• Long-life LED backlight system
• Thermal stability
• ESD protection
• Vibration resistance
• High and low temperature testing
• Durable anti-glare coating

The LED backlight system supports up to 15,000 hours of operating life.

Suitable for:

• Laptop replacement screens
• Notebook computer integration
• Portable office devices
• Educational computing systems

Compatible with systems using 30-pin eDP interfaces.

Applicable for:

• Portable monitors
• Secondary displays
• Mobile workstation displays
• Compact multimedia systems

Can be integrated into:

• Industrial control systems
• Information terminals
• Embedded computing devices
• Smart equipment displays

Suitable for:

• Productivity-focused notebooks
• Multimedia laptops
• Commercial display systems
• Portable entertainment devices

The display supports a standardized 30-pin eDP 1.4 interface.

Key interface functions include:

• 2-lane eDP signal transmission
• AUX communication support
• HPD signal support
• PWM brightness adjustment
• Backlight enable control
• Embedded EDID functionality
• Panel self-test support

The integrated LED driver design simplifies motherboard integration and reduces external circuit complexity.

The display module is manufactured according to commercial-grade quality standards.

Reliability tests include:

• High temperature operation
• Low temperature storage
• Thermal shock testing
• Vibration testing
• ESD protection testing

Environmental compliance:

• RoHS compliant
• CE compliant
• CB compliant
• Halogen-free design

Flexible customization services are available according to project requirements.

Optional adjustments include:

• Brightness customization
• Color temperature adjustment
• Resolution configuration
• Color depth optimization

Brightness range available:

• 300 to 1500 cd/m²

Supported interface options include:

• eDP
• LVDS
• MIPI

Available customization options:

• Mounting structure optimization
• Connector position adjustment
• FPC customization
• Mechanical dimension adaptation

• WUXGA 1920×1200 high-resolution display
• 16:10 aspect ratio for improved productivity
• Stable 30-pin eDP 1.4 interface
• Slim lightweight structure
• Wide viewing angle TFT LCD technology
• Low power consumption
• Reliable long-term performance
• Suitable for notebook and embedded applications
• Easy integration into portable systems
• OEM and ODM customization support available
•
