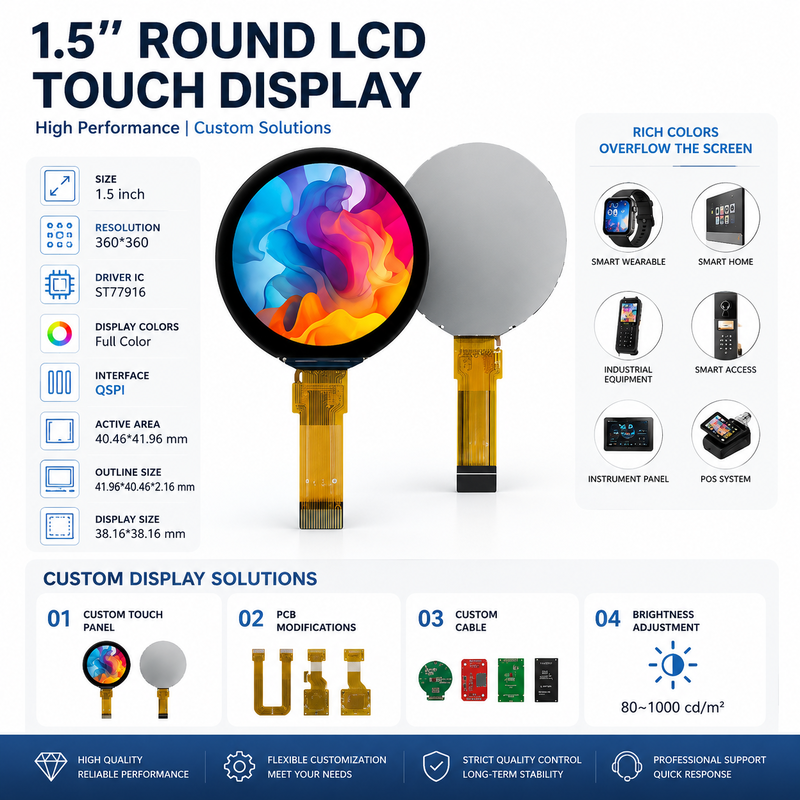

1.5" Round IPS LCD Screen – 360×360 QSPI Display for Smart Wearables
1.5 Inch Round IPS TFT LCD Display Module
360*360 Resolution | QSPI Interface | IPS Full Viewing Angle | Compact Embedded Display Solution
Product Overview
The YVO0150HHS-J1 is a compact 1.5 inch round IPS TFT LCD display module designed for wearable electronics, portable smart devices, industrial handheld equipment, and embedded display applications. Featuring a 360*360 high-resolution display, IPS full viewing angle technology, and QSPI interface, this module delivers sharp image quality, stable performance, and efficient integration for modern electronic products.
With its ultra-thin structure, high contrast ratio, and wide operating temperature range, this round TFT display is suitable for both consumer and industrial-grade applications requiring reliable small-format visual output.
Key Features
- 1.5 inch round IPS TFT LCD display
- 360*360 high-resolution full color display
- IPS technology with wide viewing angles
- QSPI interface for efficient data transmission
- High contrast ratio up to 1500:1
- Integrated ST77916 controller IC
- Normally black display mode for enhanced visual performance
- Compact and lightweight structure for embedded integration
- White LED backlight with stable brightness
- Wide operating temperature range
- 16-pin connector design for reliable connection
- Supports customized FPC and interface solutions
- Environmentally compliant materials
Technical Specifications
| Item |
Specification |
| Display Size |
1.5 Inch |
| Display Type |
IPS TFT-LCD Module |
| Model Number |
YVO0150HHS-J1 |
| Resolution |
360(RGB) * 360 |
| Display Mode |
Normally Black |
| Color Depth |
262K Colors |
| Viewing Direction |
Full Viewing Angle |
| Interface |
QSPI |
| Driver IC |
ST77916 |
| Contrast Ratio |
1500:1 (Typical) |
| Response Time |
30 ms (Typical) |
| Viewing Angle |
80/80/80/80 |
| Backlight Type |
White LED |
| Outline Dimension |
40.46 * 41.96 * 2.16 mm |
| Active Area |
38.16 * 38.16 mm |
| Touch Panel |
Optional Custom Integration |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
| Backlight Voltage |
3.0V Typical |
| Backlight Current |
75mA Typical |
| Power Supply |
VCC 2.8V / IOVCC 1.8V |
| Connector |
16 Pin |
| Compliance |
RoHS |
Product Advantages
IPS Full Viewing Angle Technology
Provides clear and consistent image visibility from multiple viewing directions, improving user experience in wearable and portable devices.
High Resolution Round Display
360*360 pixel density delivers sharp text, smooth graphics, and vivid interface presentation for modern UI applications.
Compact Ultra-Thin Design
Slim mechanical structure allows easy integration into compact electronic devices with limited installation space.
Stable QSPI Interface
Supports reliable signal transmission and simplified hardware integration for embedded system development.
Wide Temperature Reliability
Designed to operate stably under various industrial and outdoor environmental conditions.
Flexible Customization Support
Custom solutions available for:
- FPC design
- Interface modification
- Brightness adjustment
- Cover lens integration
- Touch panel adaptation
Typical Applications
Wearable Electronics
- Smart watches
- Fitness trackers
- Portable wearable devices
Smart Home Devices
- Smart control panels
- Intelligent appliance interfaces
- Home automation terminals
Industrial Equipment
- Handheld testing instruments
- Portable industrial controllers
- Embedded monitoring devices
Medical & Healthcare Devices
- Portable diagnostic equipment
- Health monitoring terminals
- Medical handheld systems
Consumer Electronics
- Compact multimedia devices
- Smart portable terminals
- Embedded digital products
Automotive Electronics
- Auxiliary display systems
- Compact dashboard indicators
- Vehicle monitoring displays
Mechanical Structure
- Compact round display architecture
- Lightweight embedded module design
- Industrial-grade connector stability
- Optimized for low-power embedded applications
Quality Assurance
Each display module undergoes strict quality inspection and reliability verification before shipment, including:
- High and low temperature testing
- Humidity resistance testing
- Display aging test
- Image retention inspection
- Electrical performance verification
- Appearance and assembly inspection
Production quality management follows internationally recognized sampling and inspection standards to ensure stable product consistency.
Packaging & Shipping
Available Shipping Methods
- DHL
- FedEx
- UPS
- International air freight
Lead Time
| Order Type |
Estimated Lead Time |
| Standard Samples |
5–7 Working Days |
| Volume Production |
Depending on Quantity |
Custom Service Support
We provide flexible OEM/ODM display customization services for industrial and commercial projects, including:
- Interface customization
- Brightness enhancement
- Touch integration
- FPC modification
- Mechanical structure adjustment
- Cover glass solutions
Company Introduction
Shenzhen Xinxiantong Technology Co., Ltd. is a professional display solution provider focusing on TFT LCD modules, embedded display systems, touch integration, and customized display applications.
The company serves multiple industries including:
- Industrial automation
- Medical electronics
- Smart wearable devices
- Automotive electronics
- Smart home systems
- Consumer electronic equipment
With experienced engineering support and stable manufacturing capability, we provide reliable display solutions for global customers and long-term project cooperation.
Frequently Asked Questions
Do you provide samples?
Yes. Samples are available for evaluation and development testing.
Can you support customization?
Yes. Custom interfaces, brightness, touch solutions, and FPC structures are supported.
What is the minimum order quantity?
Sample orders are supported with flexible quantity requirements for project development.
Which payment methods are accepted?
Bank transfer, PayPal, and other standard international payment methods are available.
How is product quality ensured?
All products undergo multiple reliability and functional tests before shipment to ensure stable performance.
Which industries use this display?
Widely used in wearable electronics, industrial devices, medical equipment, smart home systems, and embedded electronic applications.
