Name: 7.3 Inch Smart Digital Photo Frames 800*480 Advertising Digital Frame Low Power
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: PH73_E6_V1
Price: 93.00 USD
Availability: InStock

Home > Products > Digital Photo Frame >

7.3 Inch Smart Digital Photo Frames 800*480 Advertising Digital Frame Low Power

7.3 Inch Smart Digital Photo Frames

Smart Digital Photo Frames 800*480

Advertising Digital Frame Low Power

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

PH73_E6_V1

Chat Now

Request A Quote

Product Details

Name:

Smart Digital Photo Frames

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

7.3 Inch Smart Digital Photo Frames

Smart Digital Photo Frames 800*480

Advertising Digital Frame Low Power

Payment & Shipping Terms

Minimum Order Quantity

100

Price

88-98USD/Pcs

Packaging Details

Box

Delivery Time

3-5 Weeks

Payment Terms

T/T

Supply Ability

10000Pcs/Month

8 Inch HD Digital Picture Frame High Brightness Multimedia Digital Picture Frame With Video And Music Playback

Chat Now

Smart Wooden Digital Photo Frame 7 Inch High Definition Digital Picture Frame With Built In Battery And Bluetooth

Chat Now

13.3 Inch Smart Picture Frame Low Power Digital Picture Frames For Indoor Advertising

Chat Now

7.3 Inch Smart Digital Photo Frames 800*480 Advertising Digital Frame Low Power

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

7.3 Inch Smart Digital Photo Frame with E Ink Spectra 6 Full Color Display and Low Power Consumption for Indoor Advertising

Detail Information

Place of Origin

china shenzhen

Brand Name

XXT

Certification

CE ROHS

Model Number

PH73_E6_V1

Highlight:

E Ink Spectra 6 Full Color Display Smart Digital Photo Frame

Low Power Consumption E Ink Display

7.3 Inch Display Indoor Advertising Board

Product Description

YZY 7.3 Inch Smart Digital Photo Frame

Indoor Smart Advertising Board with E Ink Spectra 6 (E6) Full Color E-Paper E-Ink Display

Product Features

Advanced E Ink Spectra 6 color technology displaying six rich colors with exceptional clarity
Extremely low power consumption with minimal electricity usage during screen refresh
Energy-saving circuit powered by large-capacity 5-volt dry battery for up to one year of worry-free operation
Elegant solid wood frame design with horizontal/vertical support and hook for flexible placement options
Open-source platform enabling full customization of functions and features

PH73_E6_V1 7.3 Inch E-Ink Display Specifications

Display Size (diagonal)	7.3 Inch
Display Type	Eink Spectra 6
Color Support	Red, Yellow, Blue, White, Green, Black
Display Viewing Area	163.2mm (H) * 97.92mm (V)
Resolution	800 * 480
Charging Interface	Type-C with USB communication support

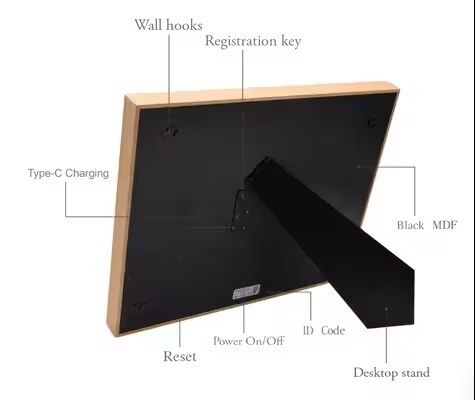

Function Keys	Power, Reset, Registration
Wireless Connectivity	WiFi b/g/n, Bluetooth 5.0
Status Indicator	RGB status indicator light
Shell Material	Solid wood (Pine wood)
Power Adapter	5V/1.5A
Built-in Battery	3.8V/5000mAh
Power Consumption (graph refresh)	≤ 3W
Dormant Power	Approximately 400μA
Update Time	≤ 15 seconds
Update Method	Mobile phone APP
Product Dimensions	240 * 176 * 24mm
Net Weight	Approximately 0.4kg
Gross Weight	Approximately 0.8kg
Storage Temperature	-25°C to 60°C
Working Temperature	0°C to 50°C
Humidity	30% to 90%

Device Registration Process

Press and hold the Registration key without releasing it. The green light will remain on continuously. Then press the Reset key once. Wait for the green light to flash briefly, and then release the key. The green light will slow down its flashing, and the device will enter the configuration registration mode.

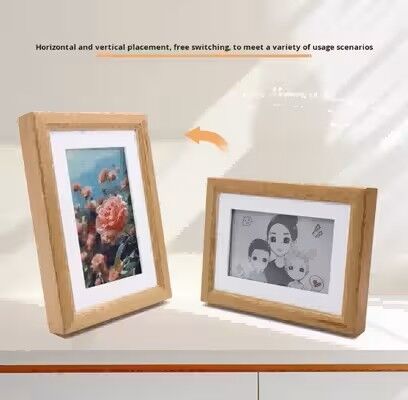

Flexible Placement Options

Multifunctional placement design suitable for both horizontal and vertical use, with wall mounting and tabletop options for various usage scenarios.
