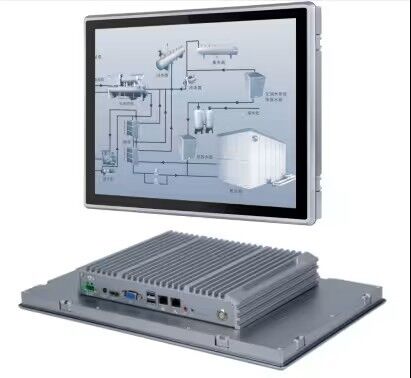

Name: Embedded Industrial HMI Touch Panel 12.1 Inch Fanless Touch Screen PC IP65
Brand: Shenzhen Xinxiantong Technology Co., Ltd.
SKU: PC121M
Price: 223.00 USD
Availability: InStock

Home > Products > Industrial Computer Monitor >

Embedded Industrial HMI Touch Panel 12.1 Inch Fanless Touch Screen PC IP65

Embedded Industrial HMI Touch Panel

Industrial HMI Touch Panel 12.1 Inch

Fanless Touch Screen PC IP65

Place of Origin:

Guangdong, China

Brand Name:

XXT

Model Number:

PC121M

Document:

PC121M Datasheet.pdf

Chat Now

Request A Quote

Product Details

Name:

Industrial HMI Touch Panel

Outline:

118.5×84.7×5.2 Mm

Color Gamut:

72 % Of NTSC(Typ.)

Drive System:

A-Si TFT Active Matrix

Signal Interface:

LVDS

Response Time:

6ms

Controller Ic:

SSD1316

Display Mode:

Normally White, Transmissive

Lumens Degrees:

1000cd/m²

Viewing Area:

116.2mm×87.1mm

View Direction:

Free/all

Storage Temperature:

-30℃~80℃

Display Color:

Monochrome Black And White

Operating_Temperature:

-20°C To 70°C

Lcm Dimension:

34.60(H) X 47.80(V) X 1.90(T)

Interface:

RGB, SPI, MIPI, LVDS, Or Parallel

Highlight:

Embedded Industrial HMI Touch Panel

Industrial HMI Touch Panel 12.1 Inch

Fanless Touch Screen PC IP65

Payment & Shipping Terms

Minimum Order Quantity

300

Price

$214-232/pieces

Packaging Details

460 ×445 × 100mm/4.2KG

Delivery Time

15 work days

Payment Terms

T/T

Supply Ability

5K/month

7 Inch Industrial Touch Screen Multi Touch Embedded Industrial Monitor With Wide Temperature Range

Chat Now

Pressure Resistant Industrial Computer Monitor 7 Inch - 21.5 Inch Multi Touch Monitor

Chat Now

IP65 Industrial Panel PC 17.3 Inch Fanless Touch Screen Computer For HMI Applications

Chat Now

21.5 Inch Industrial Computer Monitor Wide Temperature Fanless Panel Computer IP65

Chat Now

86--19886133596

xxtricky@163.com

Chat Now

Product Description

PC121M 12.1 Inch IP65 Fanless HMI Industrial Computer with Wide Temperature Range and Embedded Touch Panel PC

Detail Information

Place of Origin

Guangdong, China

Brand Name

XXT

Certification

CE/Rohs...

Model Number

PC121M

Document

Type:

Industrial Computer

Display Size:

12.1 Inch

Supplier Type:

Factory

Mounting Type:

Embedded

Packing Dimensions:

460 ×445 × 100mm

Net Weight:

3.4KG

Gross Weight:

4.2KG

Highlight:

12.1 Inch Industrial Panel PC

IP65 Fanless HMI Industrial Computer

Wide Temperature Range Embedded Touch Panel PC

Product Description

PC121M 12.1 Inch IP65 Fanless HMI Industrial Computer

Professional-grade embedded touch panel PC with wide temperature range and robust industrial construction for demanding environments.

M Series Overview

The M series represents professional-level industrial tablet computers featuring easy installation and maintenance. Available in sizes from 10.1 to 23.8 inches with Intel Core 4th to 14th generation processor support, these units integrate gigabit networking, 232/485 serial ports, and extensive expansion capabilities.

Key Design Features

Thickened Frame Design

Waterproof Trough Design

Pre-installed Hidden Indicator Light

Integrated Molding Snap-on Connector

Product Features

Precision CNC Milling: High-precision machining ensures stronger sealing, reduces dust intrusion, and improves equipment stability and service life.
Ultra-narrow Reinforced TP: 18mm narrow bezel with 2mm reinforced design enhances surface hardness and anti-interference capability.
Full Aluminum Construction: IP65-rated front panel for water and dust protection with excellent electromagnetic compatibility (EMC).
Fanless Heat Dissipation: Copper heat blocks with heat pipes ensure stable operation under high-load conditions.
Capacitive Touch: Full-flat, multi-point projected capacitive (PCAP) touch supporting full lamination, compatible with 5-wire resistive touch.
Industrial LCD Panel: Original A+ grade LCD module with wide viewing angles, temperature range, and high brightness.
I/O Interfaces: Supports 4 Ethernet, 6 USB, and 8 COM ports with customization options.
Wide Temperature Range: Operates from -20°C to 60°C (expandable to -40°C to 80°C) with 9-36V wide-range input.
Multiple Mounting Options: Supports embedded, wall-mounted, cantilever, and desktop installations with custom configurations available.
24/7 Operation: Designed for continuous use with robust performance and long service life.

Product Six Views

Product Dimensions

I/O Interface Configuration

Product Specifications

CPU	J1900/J6412/N100/I3/I5/I7/RK3568/RK3588
Memory	4G/8G/16G/32G/64G
Storage	64G/128G/256G/512G/1TB/2TB
Touch Type	Multi-point Capacitive / 5-Wire Resistive
Touch Driver Support	Windows 7/8/10, Linux, Android
LCD Display	12.1" XGA TFT (1280*800)
Active Area	246mm×184.5mm
Viewing Angle	89° (L/R/T/B)
Brightness	350 cd/m²
I/O Interfaces	2RJ-45, 2USB3.0, 2USB2.0, 1RS232/485, 5*RS232, Mini-PCIe slot
Dimensions	288.00×226.50×55.98mm
Power Input	DC 12V (9-30V optional)
Operating Temp	-20°C to 60°C (expandable to -40°C to 80°C)

Installation Methods

Embedded Snap-In Mounting

1. The cabinet has pre-drilled holes according to the embedded dimensions of the equipment.

2. Tighten the long screws and nuts onto the snap fasteners.

3. Four clips are fixed at the threaded hole positions on both sides.

4. Tighten the long screws to secure the equipment in place.

Desktop Mounting

Cantilever Mounting

Packing List

No.	Item	QTY
1	12.1 Inch Industrial Panel PC	1 unit
2	Power Adapter	1 unit
3	3-pin 5.08 Power Terminal Plug (optional)	1 unit
4	Embedded Snap-In Kit (optional)	1 set
5	Wall-Mount Bracket (Optional)	1 unit
6	Certificate of Conformity	1 sheet
7	Warranty Card	1 sheet
8	User Manual	1 copy

Ordering Information

No.	Name	Description
1	Ethernet Port	Default single port; optional dual or quad ports
2	Serial Port	Default 2 * RS232; optional 6 * RS232/RS485
3	USB	Default 4 * USB (2 * USB 2.0, 2 * USB 3.0); optional 8 * USB
4	GPIO	Optional 4 input / 4 output

Safety Warnings

This device is precision electronic equipment with IP65-rated front panel protection. Avoid water splashes or rain exposure.
Do not place in humid environments to prevent condensation and component damage.
Avoid prolonged direct sunlight or high UV environments to prevent screen damage.
Screen brightness is ≥350 cd/m². Avoid outdoor usage in high ambient light.
Do not disassemble or repair the device yourself due to high voltage risks.

Recommended operating environment: temperature 0-50°C, relative humidity 10%-70%.
